The Angle System

Slotted Angle System (pat# 6,055,668):
The Angle System is a patented U.L. tested for 1-2 hour fire and seismic movement of 1 1/2”. Slots for deflection are spaced every one inch on center. Provides a flange of 2 ½” at the head-of-wall for ceiling attachment. The Angle System can be used for retro-fitting of pre-standing walls where deflection at the head-of-wall is required by code.

This two piece system can be used with any wall width. Tack slots allow for upward and downward movement of the structure while maintaining a positive attachment/secure installation.

Meets the cycle, fire resistance, and hose stream testing requirements of the BOCA Code (1999) Section 709; Standard Code Section 705; UBC Section 706 and the IBC 2000. Underwriters Laboratories, Inc. Tested and Listed.

Underwriters Laboratories Standard ANSI/UL 2079 Standard for Fire Resistant Joint Systems

ASTM E-1966 Standard for Fire Resistant Joint Systems

ASTM E-119 Standard for Fire Tests of Building Construction and Materials

Cycle Tested 500 times for expansion and contraction

Cycle Tested 100 times for seismic deflection



Test Standards



Underwriters Laboratories, Inc. Listed and Tested:

System Number HW-D-0141 1 & 2 Hour Dynamic/Deflection Head-of-Wall System

System Number HW-D-0142 I & 2 Hour Dynamic/Deflection Head-of-Wall System

Meets or Exceeds all National Model Building Codes:

UBC 1997
Section 706 - Fire Resistive Joint Systems
Section 709 - Walls and Partitions

BOCA 1999
Section 709 - Fire Resistive loint Systems
Section 711 - Fire Partitions

Standard Code 1997
Section 704 - Fire Resistant Joint Systems
Section 705 - Fire Resistant Joint Systems

IBC 2000
Chapter 7 — Fire Resistant Joint Systems

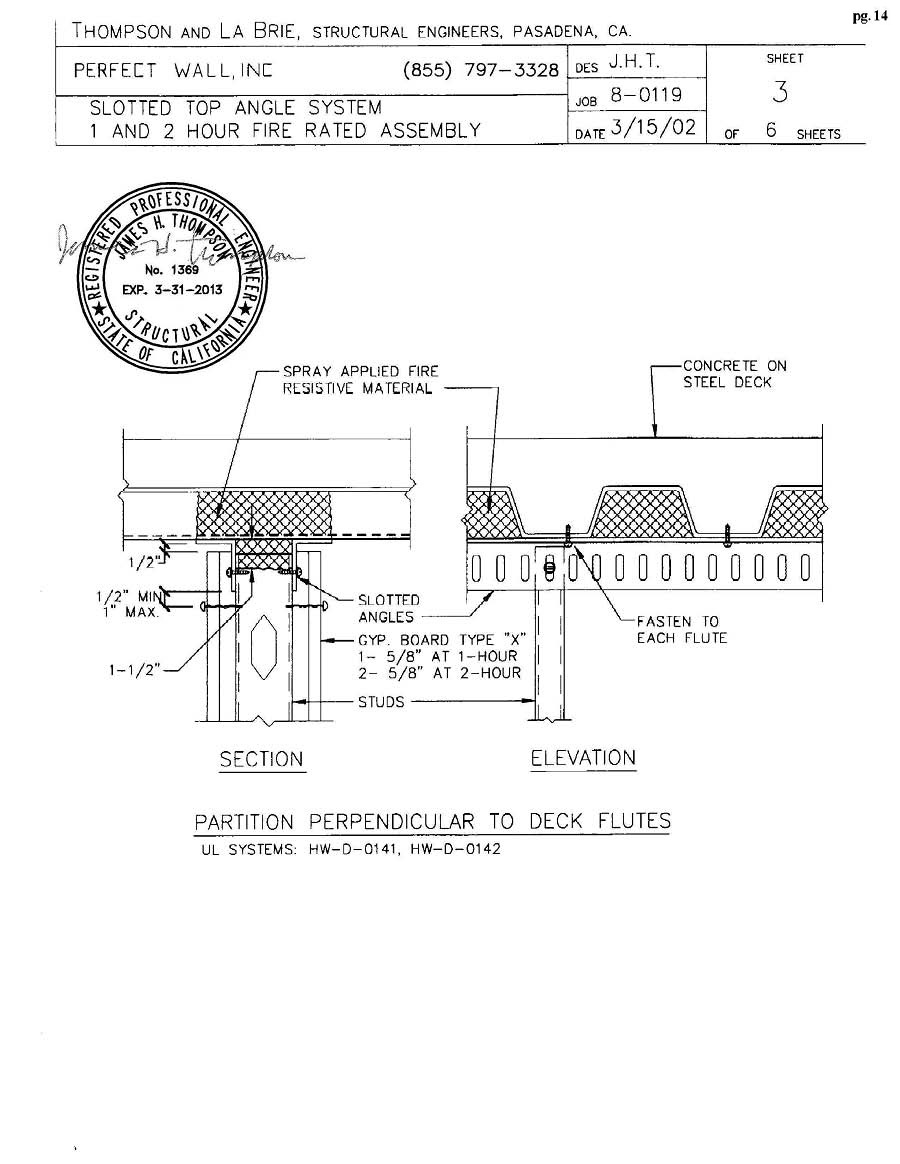

P.E. Drawings And Application
